Ill Fitting Lid

[Oliver Sheen]

Not sure if this has been covered before but my lid doesn't fit very well on 1969 suitcase top. It's seems ok on the front and sides but drops down at the back further than it should.

It is cut away almost completely from end to end at the front and given that this 73 came with 88 keys I wouldn't be at all surprised if the lid was from a different beast

[Oliver Sheen]

next pic

[Oliver Sheen]

..and the next

[Cormac Long]

Here's my '75 case. Those two strips at the back are what the lid rests on. There should be something similar in your case and if not, it should be straight forward to retrofit supports.

[David Aubke]

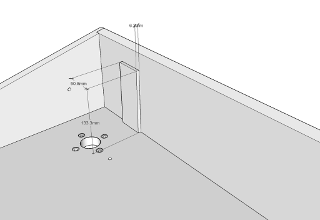

Here are some dimensional details for those harp cover supports.


That width is 6.3 mm and the support's center is about 100 mm from the inside edge of the cabinet side.

[Oliver Sheen]

cheers, Dave!
